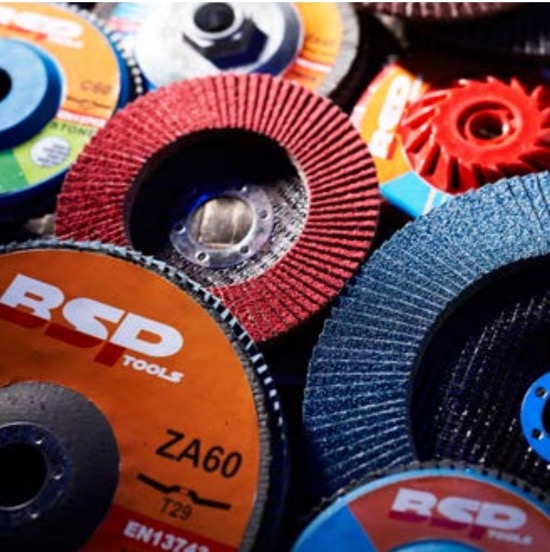

Flap discs are an indispensable tool in the metalworking and woodworking industries. They are designed to grind, blend, and finish metal surfaces, welds, and edges, and can be used on a range of materials including stainless steel, aluminum, and mild steel. However, not all flap discs are created equal. There are different types of flap discs like flap disc for wood、metalworking,etc. Each with unique features and applications. Two of the most common types of flap discs are T27 and T29 flap discs.
In this article, we will explore the T27 vs T29 Flap Disc Differences , their unique features, and the applications they are best suited for. We will also discuss the pros and cons of each type, to help you make an informed decision on which flap disc is best for your specific task. Additionally, we will provide tips on how to choose the right flap disc for your project and how to use it safely and effectively.
T27 vs. T29 Flap Discs: What’s the Difference?

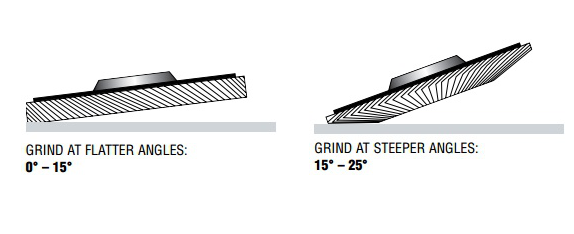

What Is The Difference Between T27 And T29 Flap Disc? The main difference between T27 and T29 flap discs is their shape and angle.
- T27 flap discs have a flat shape and are designed for use on flat surfaces. They have a 5-15 degree angle and are best suited for grinding and finishing flat surfaces.
- T29 flap discs, on the other hand, have a conical shape and are designed for use on contoured surfaces. They have a 10-15 degree angle and are best suited for blending and finishing curved surfaces.
Another key difference between T27 and T29 flap discs is the arrangement of the flaps.
- T27 flap discs have a straight edge with the flaps arranged at an angle to the disc. This allows for a more aggressive grinding action and is best suited for removing material quickly.
- T29 flap discs, on the other hand, have a curved edge with the flaps arranged in a spiral pattern. This allows for a smoother grinding action and is best suited for finishing and blending.
- Welding and Metal Fabrication
Flap discs are commonly used in welding and metal fabrication applications. They are ideal for grinding and finishing welded seams, as well as removing excess material from metal surfaces. Type 27 flap discs are best suited for grinding flat surfaces, while type 29 flap discs are better for contouring and shaping.
- Auto Body Work
Flap discs are also commonly used in auto body work. They are ideal for grinding and finishing metal surfaces, as well as shaping and contouring body panels. Type 29 flap discs are best suited for this type of work, as they allow for greater surface contact when grinding at an angle.
Flap discs are also used in woodworking applications. They are ideal for removing excess material from wood surfaces, as well as shaping and smoothing contours. Type 29 flap discs are best suited for woodworking applications, as they allow for greater surface contact when grinding with an angle grinder.
- Cleaning and Finishing
Flap discs are also commonly used for cleaning and finishing tasks. They are ideal for removing rust, paint, and other surface contaminants, as well as for achieving a smooth and uniform finish. Type 27 flap discs are best suited for cleaning and finishing flat surfaces, while type 29 flap discs are better for cleaning and finishing contoured surfaces.
Pros and Cons
- T27 flap discsare ideal for heavy-duty grinding and stock removal. They are more aggressive than T29 flap discs and can remove material quickly. However, they can be more difficult to control and can leave deeper scratches on the surface. They are also not as effective on contoured surfaces.
- T29 flap discsare ideal for finishing and blending. They are smoother than T27 flap discs and can produce a more polished finish. They are also better suited for contoured surfaces. However, they are not as effective at removing material quickly and can take longer to achieve the desired finish.
Which One to Choose?
When choosing between T27 and T29 flap discs, it is essential to consider the specific application.
- The T27 flap disc is suitable for flat grinding applications, including smoothing welds, removing surface rust, and deburring edges. The larger grinding surface and smaller angle grinder size make it ideal for precision grinding tasks.
- The T29 flap disc is suitable for contour grinding applications, including shaping and finishing curved surfaces. The angled flaps allow the disc to conform to the workpiece’s contours, providing a more consistent finish and reducing the risk of gouging. The larger angle grinder size provides greater power and speed,allowing for faster stock removal and increased productivity, making it ideal for heavy-duty applications.
Another factor to consider when choosing between T27 and T29 flap discs is the type of abrasive material. Zirconia alumina is the most popular abrasive material used in both T27 and T29 flap discs, but ceramic and aluminum oxide are also available.
- Zirconia alumina is a high-performance abrasive that can withstand high heat and pressure, making it suitable for aggressive grinding applications.
- Ceramic is a newer abrasive material that offers even higher performance than zirconia alumina, but it is also more expensive.
- Aluminum oxide is a more economical abrasive material that is suitable for lighter grinding tasks.
In summary, the T27 flap disc is ideal for flat grinding applications, while the T29 flap disc is suitable for contour grinding applications. When choosing between the two, consider the specific application and the type of abrasive material needed. It is also important to choose the appropriate angle grinder size for the task at hand.
When using flap discs, it is important to take proper safety precautions to avoid injury.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a dust mask.
- Make sure your work area is well-ventilated to avoid inhaling dust or fumes.
- Use a grinder with a safety guard to protect your hands and face from debris.
- Avoid using damaged or worn flap discs, as they can break apart during use and cause injury.
- Inspect your flap discs before each use and replace them if they show signs of wear or damage.
- Be sure to read and follow the manufacturer’s instructions for use and safety.
In conclusion, What are T27 vs T29 Flap Disc Differences? flap discs are a versatile tool for grinding, blending, and finishing metal and wood surfaces. T27 and T29 flap discs are two of the most common types, with unique features and applications. T27 flap discs are best suited for heavy-duty grinding and stock removal on flat surfaces, while T29 flap discs are best suited for finishing and blending on contoured surfaces. When choosing a flap disc, consider the material you are working with, the type of finish you want to achieve, and the shape of the surface. Always follow safety precautions to avoid injury and damage to your tools and workpiece. With the right flap disc and proper technique, you can achieve a smooth, polished finish on your metal and wood projects.
